マルチエフェクトを使用してみる(SD-90/80)
81:MFX/Gtr MltA†

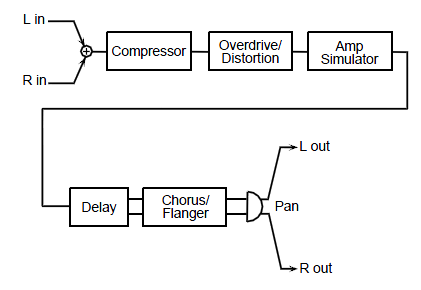

ギター・マルチ1 はコンプレッサー(Comp)、オーバードライブまたはディストーション(OD/Dist)、アンプ・シミュレーター(Amp Sim)、ディレイ(Delay)、コーラスまたはフランジャー(Cho/Flg)を直列に接続しています。
No. | Display | Setting Value | Value Dec. | Initial |
1 | COMP Switch | OFF, ON | 0 - 1 | 1 |
2 | COMP Attack | 0 - 127 | 0 - 127 | 64 |
3 | COMP Sustain | 0 - 127 | 0 - 127 | 127 |
4 | COMP Level | 0 - 127 | 0 - 127 | 80 |
5 | OD/DS Switch | OFF, ON | 0 - 1 | 1 |
6 | OD/DS Type | OVERDRIVE, DISTORTION | 0 - 1 | 0 |
7 | OD/DS Drive | 0 - 127 | 0 - 127 | 64 |
8 | OD/DS Tone | 0 - 127 | 0 - 127 | 50 |
9 | OD/DS Level | 0 - 127 | 0 - 127 | 80 |
10 | AmpSim? Switch | OFF, ON | 0 - 1 | 1 |
11 | AmpSim? Type | SMALL, BUILT-IN, 2-STACK, 3STACK | 0 - 3 | 0 |
12 | DLY Switch | OFF, ON | 0 - 1 | 1 |
13 | DLY TimeLeft? | 0 - 3000 ms, note*2 | 0 - 3022 | 3013 |
14 | DLY TimeRight? | 0 - 3000 ms, note*2 | 0 - 3022 | 3010 |
15 | DLY Feedback | -98 - +98 % | 0 - 98 | 59 |
16 | DLY HF Damp | 200 - 8000 Hz, BYPASS (*1) | 0 - 17 | 17 |
17 | DLY Balance | D100:0W - D0:100W | 0 - 100 | 50 |
18 | CH/FL Switch | OFF, ON | 0 - 1 | 1 |
19 | CH/FL Type | CHORUS, FLANGER | 0 - 1 | 0 |
21 | CH/FL Rate | 0.05 - 10.0 Hz, note*2 | 1 - 222 | 10 |
22 | CH/FL Depth | 0 - 127 | 0 - 127 | 20 |
23 | CH/FL Feedback | -98 - +98 % | 0 - 98 | 89 |
20 | CH/FL PreDelay? | 0.0 - 100 ms | 0 - 125 | 10 |
26 | CH/FL Balance | D100:0W - D0:100W | 0 - 100 | 50 |
24 | CH/FL FilterType? | OFF, LPF, HPF | 0 - 2 | 0 |
25 | CH/FL Cutoff | 200 - 8000 Hz (*2) | 0 - 16 | 7 |
28 | Output Level | 0 - 127 | 0 - 127 | 127 |
27 | Output Pan | L64 - 63R | 0 - 127 | 64 |
(*1) 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000,
2500, 3150, 4000, 5000, 6300, 8000 Hz, BYPASS
(*2) 200, 250, 315, 400, 500, 630, 800, 1000, 1250, 1600, 2000,
2500, 3150, 4000, 5000, 6300, 8000 Hz
